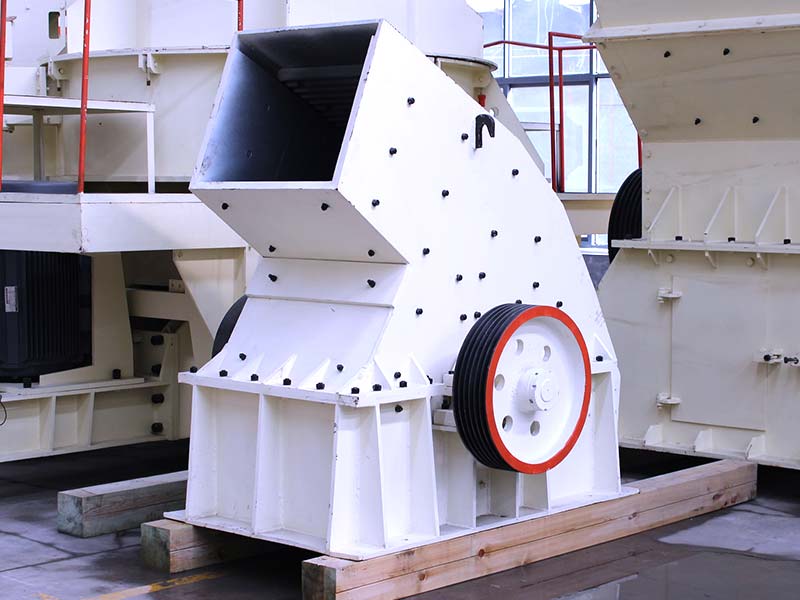

Hammer Crusher

Hammer Crusher

Feeding Size:  50-1600mm

Processing Capacity:   10-2500t/h

Range of application:  Mining, smelting, building materials, roads, railways, water and chemical industries.

Applied Material:  Granite, Basalt, Limestone, Pebbles, Cement Clinker, Quartz stone, Iron ore, Bauxite, Construction waste, Salt, Brick, Coal, Glass,etc

  Email us at sales@shibochina.com

This machine is suitable to crush the medium hardness and brittle material in the mining, cement, coal, metallurgy, building materials, highway, gasification and so on. It has the simple structure, high crushing Ratio, high production efficiency, and can be dry or wet crushing . The grate gap of the equipment can be adjusted according to user requirements to get the different final sizes to meet the different needs of different users.

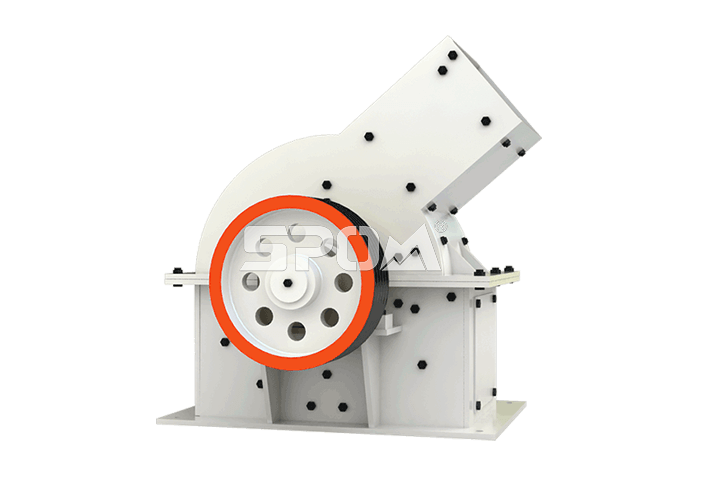

Hammer Crusher

1.convenient maintenance

2.wear resistant and impact resistant

3.compact structure,lees easy-wearing parts

4.sealed structure,less pollution and ash leakage of machine

5.The granularity can be adjusted according to the requirement

The electromotor drives the rotor to rotate with high speed in the crushing chamber. The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.

Hammer Crusher

Model Feeding Size (mm) Discharginh Size (mm) Capacity (t/h) Power (kw) Weight (t) Dimensions (mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900 × 670 × 860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200 × 1050 × 1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310 × 1180 × 1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600 × 1390 × 1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800 × 1590 × 1775

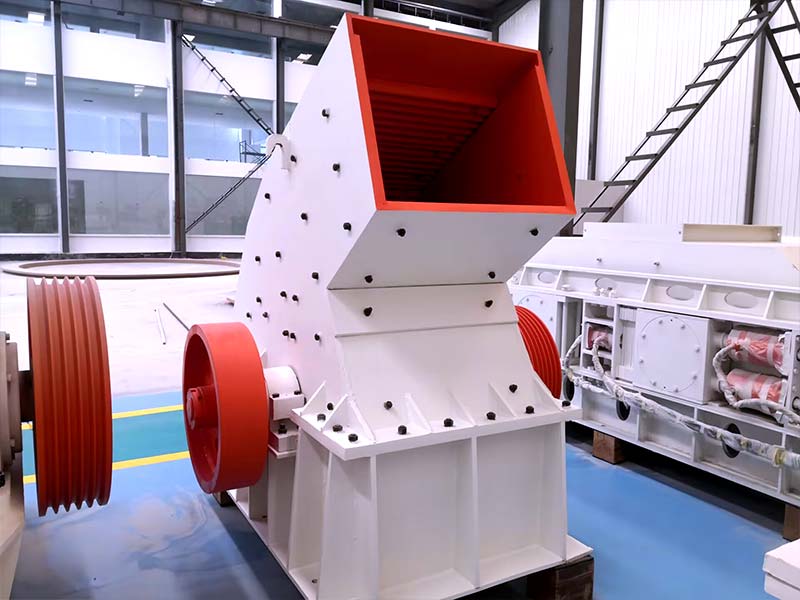

Heavy Hammer Crusher

Model Rotor diameter x length (mm) Feed Opening Size Length x Width (mm) Feeding Size (mm) Capacity (t/h) Motor Power (kw) Dimensions (mm)
PCZ1308-Ⅱ 1310×790 850x800 ≤600 100-160 132 2818×2100×2390
PCZ1510-Ⅴ 1500×950 1000x900 ≤700 160-210 132x2 3260x2414x2750
PCZ1512-Ⅴ 1500x1160 1200x900 ≤750 250-320 160x2 3260×2624×2750
PCZ1615-Ⅵ 1650×1452 1500x1200 ≤1000 420-500 200x2 3456x2915x3185
PCZ1620-Ⅱ 1660x1900 2000x1200 ≤1200 800-1000 400x2 3500x3100x3200
PCZ1820 1800x1964 2000x1200 ≤1200 1000-1200 450x2 3270x3210x3520
PCZ2125 2100x2486 2600x1690 ≤1600 2000-2500 1250 3728x4565x4667
