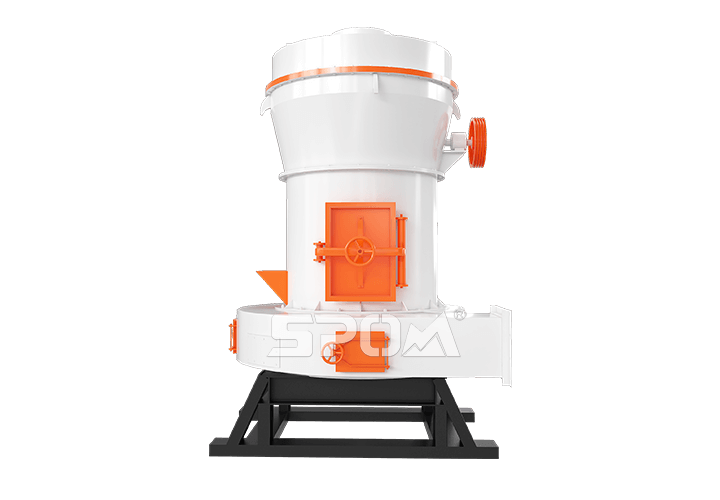

High-Pressure Suspension Grinder

High-Pressure Suspension Grinder

Feeding Size:  5-35mm

Processing Capacity:   0.4-16t/h

Range of application:  Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, etc.

Applied Material:  Cement, coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

  Email us at sales@shibochina.com

High-pressure suspension grinder is developed by our Chief Engineer who devotes himself to fine powder processing for many years. It is a new type and opens a new era of high-efficiency and low energy consumption. High-pressure suspension grinder is widely used in mining, metallurgy, chemical engineering, building materials to grind finely more than 280 kinds of material with Mohs hardness less than 9.3 and the moisture content below 6%, such as barite, limestone, ceramic and slag. The granularity of finished product is controlled between 80 and 425 meshes (the minimum is 1000 meshes). And it can produce 30-80 meshes coarse powder by adding some special equipment.

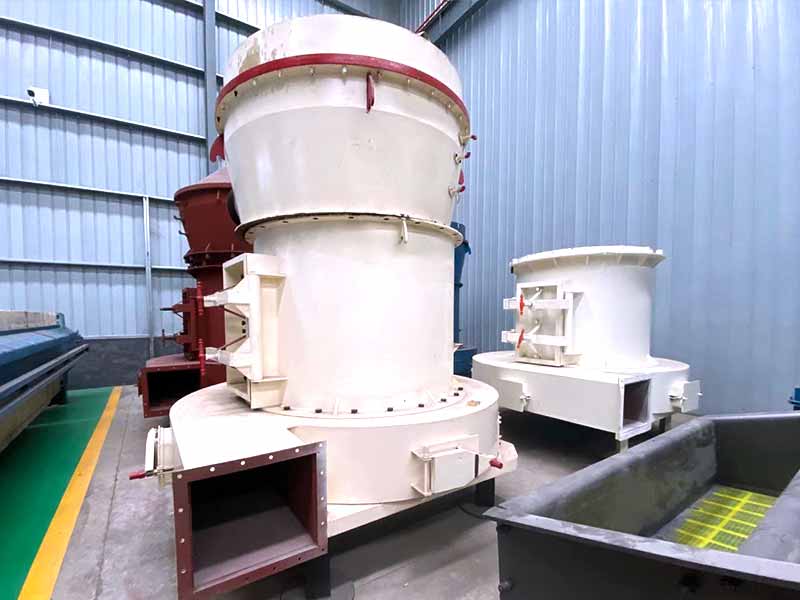

High-pressure Suspension Grinder

1. Compared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
2. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
3. High Pressure Suspension Mill meets the requirement of national dust-dump standard.
4. The separator can be adjusted very easily.
5. The multi-class seals are adopted to keep the grinding equipment tightly closed.

High-pressure Suspension Grinder

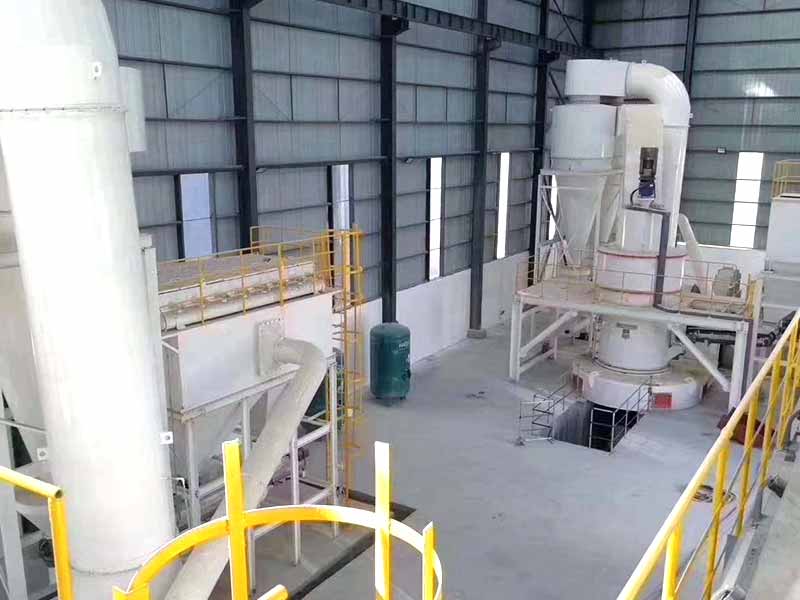

When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring; the materials after grinding are brought into the separator along with the air from the blower, and the qualified fine powder became final products and come into the cyclone powder collector, the other unqualified powder fall down to be re-grinded. The circular air returns back to the blower that the above process will be repeated, and the remaining air enters the bag filter in order to protect the environment.
Model Roll Number Roll Size(mm) Grind Ring Size(mm) Feeding Size(mm) Output Size(mm) Power(kw) Capacity(t/h) Overall Dimension(mm)
YGM-65 3 210 × 150 650 × 150 ≤15 0.613-0.033 15 0.4-1.8 4100×3300×4500
YGM-75 3 260 × 150 780 × 150 ≤15 0.613-0.033 18.5 1-3 4300×3500×5100
YGM-85 3 270 × 140 830 × 150 ≤20 0.613-0.033 22 1.2-4 5300×4100×5200
YGM-95 4 310 × 170 950 × 170 ≤25 0.613-0.033 37 2.1-5.6 7100×5900×7900
YGM-130 5 410 × 210 1280 × 210 ≤30 0.613-0.033 75 2.5-9.5 7900×8000×9700
YGM-160 6 440 × 270 1600 × 270 ≤35 1.9-0.045 132 8-16 12550×5700×8355
