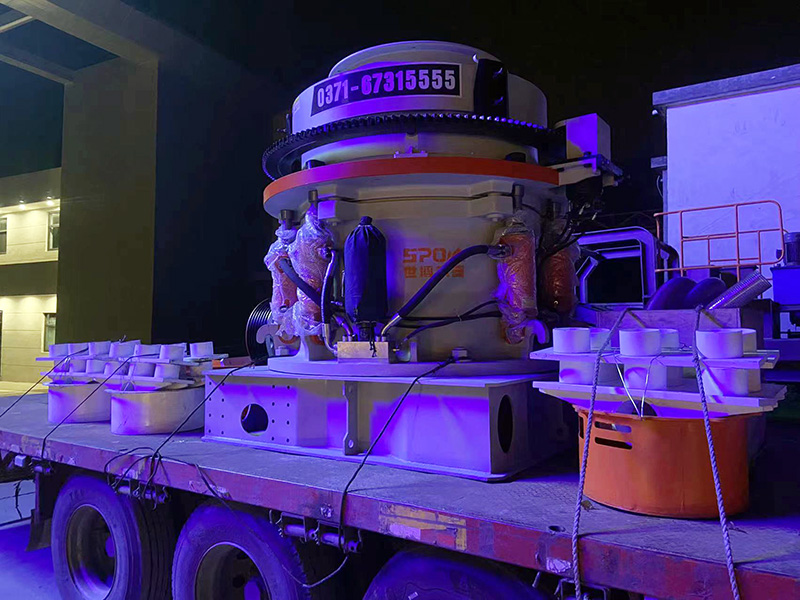

HP Series Multi - Cylinder Hydraulic Cone Crusher

HP Series Multi - Cylinder Hydraulic Cone Crusher

Feeding Size:  50-326mm

Processing Capacity:   72-1100t/h

Range of application:  Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.

Applied Material:  Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz, diabase, etc. (for hard stone).

  Email us at sales@shibochina.com

Multi-cylinder hydraulic cone crusher is suitable for crushing above medium hardness of various minerals and rocks, such as limestone, iron ore, pebbles, non-ferrous metal ore, granite, basalt, limestone, quartzite and sandstone. Its high speed, high crushing capacity and unique patented design make the final products with a very high quality cube type, and the characteristics of easy to maintain ensure excellent high stability of the operation. It is the world- renowned, and the latest generation of hydraulic cone crusher in the mining construction industry compared to the spring cone crusher.

HP series multi - cylinder hydraulic cone crusher


1.Stable operational capacity.

2.High production capacity,35% -60% higher than spring cone crusher.

3.Perfect finished particles,final product gradation more reasonable.

4.High crushing efficiency, 5% -15%higher than spring cone crusher.

5.Advanced lubrication mechanism,bearing lubrication double protection and overload protection.

HP series multi - cylinder hydraulic cone crusher

Under the leading role of eccentric sleeve, the movable cone of the HP Series high-efficiency hydraulic cone crusher does rotary and pendulum movement which drives the broken walls squeeze and twist the raw material between the rolling ace tabular wall and it. According to laminated theory, the raw material is crushed and polished following their own texture by the force from different directions. Stable aggregate are produced finally. The eligible raw material falls down from the gap of the broken wall. The others will be kept crushing until it reaches the desired size.

HP series multi - cylinder hydraulic cone crusher

Model Cavity Type Broken Cone Big End Diameter(mm) Feed Opening Size(mm) Maximum feed size(mm) Discharging Opening Size(mm) Capacity(t/h) Main Motor Power(kw) Weight(t)
HP200 C1 900 210 178 22~38 160~250 4P   160 10.1
C2 155 132 18~38 145~250
C3 130 110 14~38 120~250
F1 118 100 12~25 108~210
F2 90 76 10~25 81~210
F3 70 60 8~25 72~210
HP300 C1 1100 235 200 26~45 230~445 4P   220 17.8
C2 211 180 20~45 200~445
C3 135 115 16~45 180~445
F1 124 105 14~25 160~220
F2 96 82 12~25 140~220
F3 70 60 8~25 120~220
HP400 C1 1400 330 280 26~51 270~630 4P   315 25
C2 200 170 22~51 243~630
C3 152 130 16~51 210~630
F1 135 115 12~25 162~370
F2 106 90 10~25 126~370
F3 80 68 8~25 104~370
HP500 C1 1500 335 285 32~51 365~790 4P   400 34.1
C2 229 190 25~51 328~790
C3 180 152 19~51 280~790
F1 152 130 13~25 202~450
F2 124 105 10~25 158~450
F3 88 75 8~25 122~450
HP800 C1 2000 385 326 32~51 616~1100 4P   630 69.2
C2 350 298 25~51 522~1100
C3 280 238 16~51 380~1100
F1 160 136 13~25 328~730
F2 120 102 10~25 270~730
F3 90 77 8~25 166~730
