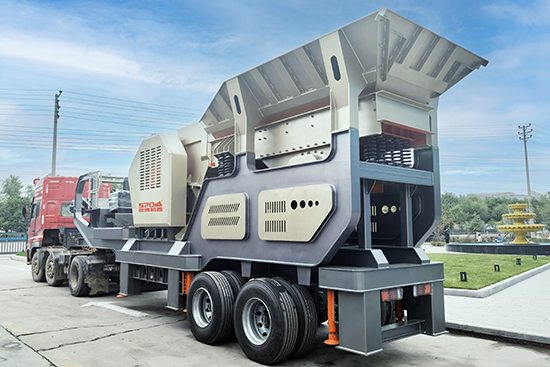

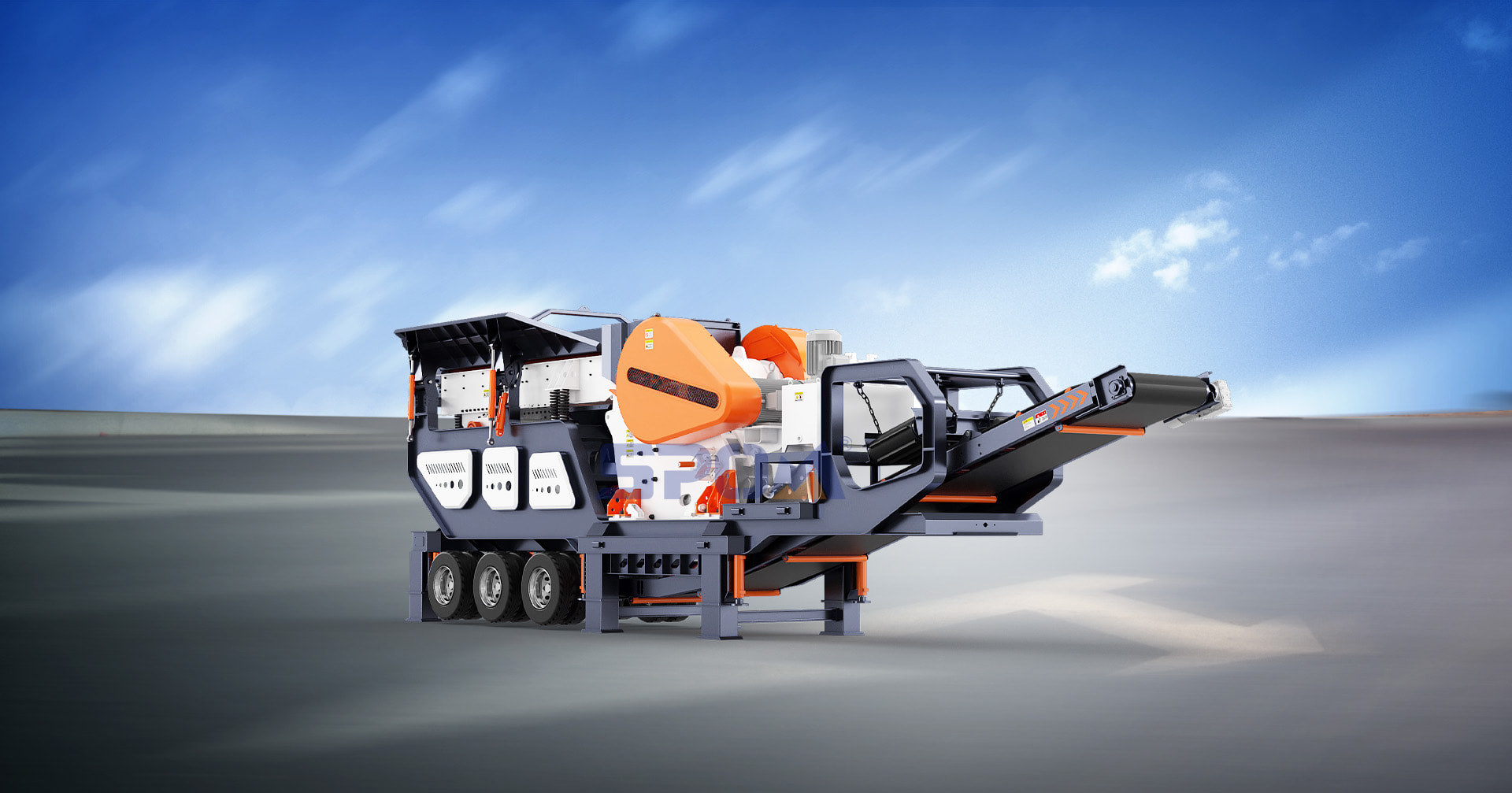

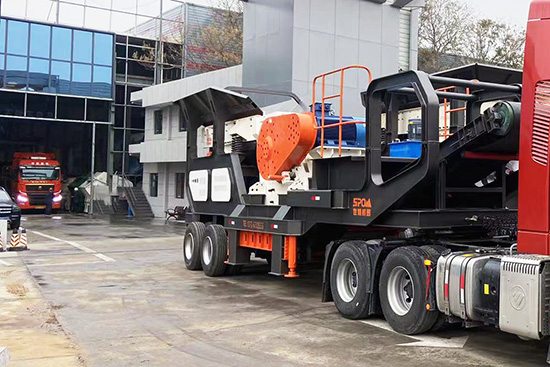

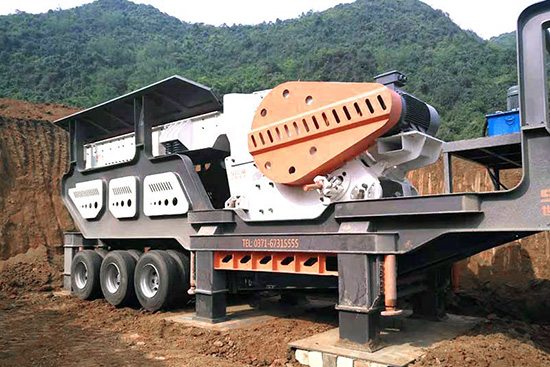

Mobile Jaw Crushing Plant

Mobile Jaw Crushing Plant

Feeding Size:  50-960mm

Processing Capacity:   90-720t/h

Range of application:  mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Applied Material:  Pebbles, Construction waste,Rocks (limestone, granite, basalt, diabase, andesite, etc.), Ore tailings, etc

  Email us at sales@shibochina.com

Mobile jaw crusher mainly for primary crushing.The main parts include jaw crusher,vibrating feeder,vibratory screen,belt conveyor,etc.Also mobile jaw crusher can be used for fine crushing,just replace jaw crusher with hammer crusher,then we can reduce the crushing process.So mobile jaw crusher has various application.

Mobile Jaw crushing plant

1.Large crushing ratio;

2.Moving flexible and High performance;

3.Compact structure and occupy less space;

4.Shorter transportion time and lower installation cost;

5.Flexible parking function, quickly access to the operating mode;

6.Versatile body combining alternative equipment,meet customers personalized needs.

Materials are fed to the jaw crusher evenly and gradually by vibrating feeder for primary crushing. And then the crushed materials will be transferred to circular vibrating screen to form a closed-circuit system for cycle crushing. The finished materials will be transferred out by belt conveyors. This is a continuous crushing operations. And the circular vibrating screen can be removed according to the actual production demands, just to crush raw materials directly for primary crushing. So that it will be convenient and flexible to work together with other assorted crushing machines.

Mobile Jaw Crushing Plant

Item Unit MJ600 MJ750 MJ900 MJE870 MJE1100
Transportation Length mm 11900 13100 14600 14600 15400
Transportation Width mm 2550 2550 1950 1550 1950
Transportation Height mm 3650 4450 4500 4500 4500
Max Length mm 12100 13300 14600 14600 15400
Max Width mm 2900 2950 3300 3300 3300
Max Height mm 4060 4810 5300 5300 5700
Weight t 39 57 83 65 92
Tire Configuration   Dual-axial Dual-axial Dual-axial Dual-axial Dual-axial
Crusher   PE600x900 PE750 x 1060 PE900 x 1200 JCE870 x 1100 JCE1100 x 1300
Max Feeding Size mm 480 630 750 720 960
Discharge Opening Range mm 65-160 80-140 100-200 85-150 125-260
Capacity t/h 90-180 110-320 220-450 125-350 350-720
Vibrating Feeder   GZD960x3800 GZD1100x4200 GZD1300x4900 GZD1300x4900 GZD1300x4900
Main Belt Conveyor   B800x8.5M B1000x9M B1200x9.5M B1200x9.5M B1200x9.5M
Side-Opening(Optional)   B450x3M B500x3.5M B650x4M B650x4M B650x4M
Generator Set(Optional) kw 160 200 220 250 300
Inor-Separator(Optional)   RCMD(C)-8 RCMD(C)-10 RCMD(C)-12 RCMD(C)-12 RCMD(C)-12
