Spiral Sand Washing Machine

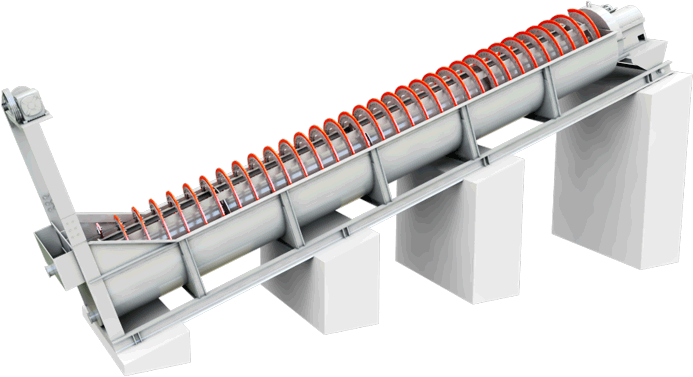

Spiral Sand Washing Machine

Feeding Size:  5-10mm

Processing Capacity:   5-350t/h

Range of application:  Widely used in highway, hydropower, construction and other industries of washing, grading, impurity, and fine-grained and coarse-grained material washing and other operations, the construction and road construction with gravel is particularly appropriate.

Applied Material:  Pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand and so on.

  Email us at sales@shibochina.com
Spiral sand washing machine is divided into double helix and single spiral. Can be cleaned and separated from the gravel in the soil and debris, its novel sealing structure, adjustable overflow weir plate, reliable transmission device to ensure the effect of cleaning dehydration. Widely used in highway, hydropower, construction and other industries of washing, grading, impurity, and fine-grained and coarse-grained material washing and other operations, the construction and road construction with gravel is particularly appropriate.

Spiral Sand Washing Machine

The spiral sand and gravel washing machine structure is reasonable, easy maintenance, handling capacity, power consumption is small, high degree of washing. The new sealed structure, fully enclosed oil bath drive, adjustable overflow weir plate, to ensure that the series of products efficient, durable, cleaning, dehydration effect, fine grain products to maintain stability and so on.

Spiral Sand Washing Machine

Material from the top of the machine into the high-speed rotation of the impeller, under the action of high-speed centrifugal force, and another part of the umbrella-shaped flow in the impeller around the material to produce high-speed impact and crushing, the material after the impact, Between the chassis to form the eddy current several times the impact of each other, friction and smash, from the lower part of the direct discharge, the formation of closed loop many times, by the screening equipment control to achieve the desired finished product size.
Model XL920 2XL920 XL1120 2XL1120
Screw Diameter(mm) 920 920 1120 1120
Sink Length(mm) 7585 7585 9750 9750
Feeding Size(mm) ≤ 10 ≤ 10 ≤ 10 ≤ 10
Capacity(t/h) 100 200 175 350
Screw Speed(r/min) 21 21 17 17
Motor Power(kw) 11 2*11 18.5 2*18.5
Water Consumption(t/h) 10-80 20-160 20-150 40-300
Outline Size(mm) 8500*2810*3600 8420*3760*396 1078*3980*4170 1097*5250*4720
Weight(t) 6.2 11.5 10.9 17.8
