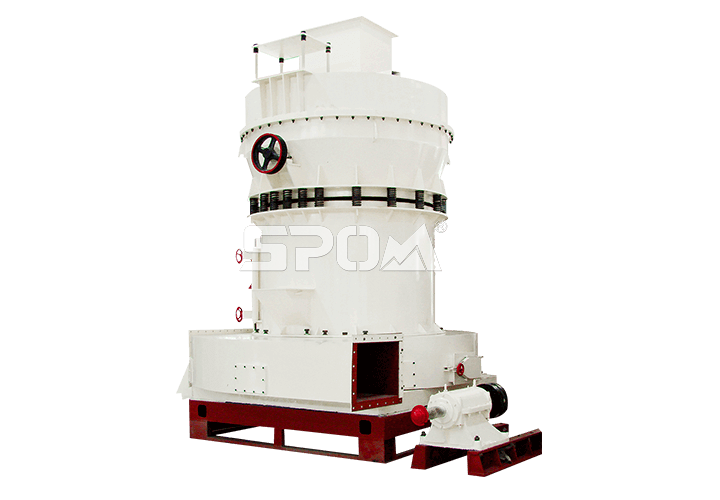

TGM Super Pressure Trapezium Mill

TGM Super Pressure Trapezium Mill

Feeding Size:  ≤20mm

Processing Capacity:   3-22t/h

Range of application:  Cement, Coal, power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.

Applied Material:  Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, rock phosphate, manganese ore, quartz, active carbon, coal, etc.

  Email us at sales@shibochina.com

TGM Series Super Pressure Trapezium Mill is the latest grinding mill. TGM Series Supper Pressure Trapezium Mill is researched and designed by our experts basing on long term experiences of mill research and development, and according to numbers of customers' using requirements and suggestions home and aboard. The TGM Series Super Pressure Trapezium Mill adopts our patented technologies, like trapezium working surface, flexible connection, roller linked pressure boost, etc.

TGM Series Super Pressure Trapezium Mill has reached the advanced international level of powder making equipment manufacturing. TGM Series Super Pressure Trapezium Mill mainly consists of mainframe, speed reducer, powder separator, blower, bag filter, pipes, powder collector, motor, etc. The peripheral equipments are jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc. TGM Series Super Pressure Trapezium Mill can grind all kinds of non-flammable and non-explosive minerals with Moh’s hardness lower than 9 and humidity less than 6%,and TGM Series Super Pressure Trapezium Mill is widely used in metallurgy, manufacture of building materials, chemical industry, mining industry, etc.

TGM Super Pressure Trapezium Mill


The diameters of each part of rollers and rings are different, the upper part is big and the lower part is small, then they formed a trapezium form. This form can reduce materials’ sliding speed downwards and prolong the grinding time for materials, thus the grinding efficiency is increased.; the pressing springs have the functions of balancing and pressure increasing; the flexible connection can make the mill stable, decrease the shocking and avoid sympathetic vibration; high density powder separator impeller decreases the air resistance and increases powder collecting fineness and capacity; the efficiency of energy saving and high efficient centrifugal blower is as high as 83%.

TGM Super Pressure Trapezium Mill

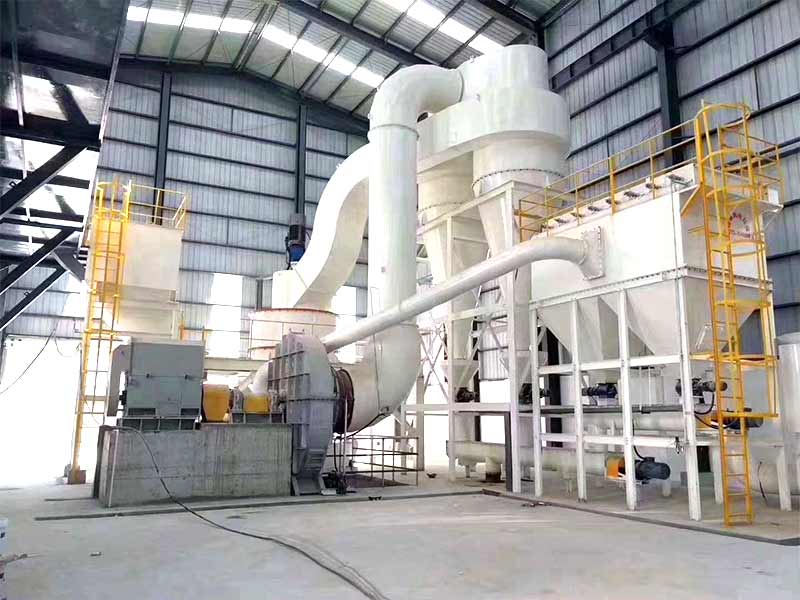

Large materials are crushed by Jaw crusher to the needed sizes firstly, then the materials are elevated to storage hopper by bucket elevator, third, the materials are fed into the grinding chamber for grinding by vibrating feeder equably and continuously. The powder after grinding goes upwards together with the airflow, after separating by powder separator, those which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then discharged from the discharge valve as final products. The airflow is sucked into centrifugal blower through wind recycling pipe at the upper part of cyclone powder collector. The mainframe is driven by the speed reducer through the central axis in the mill. The quincunx stand connected with the upper part of central axis, at the quincunx stand, rollers are set and by which the vibrating pivot formed. Below the quincunx stand and rollers there is shovel system. Materials are fed into the space between rollers and shovels when they are turning, and then be grinded by the pressure produced when rollers are turning, thus powder is made.

TGM Super Pressure Trapezium Mill

Item//Model TGM100 TGM130 TGM160
Roller piece 4 5 6
Roller Diameter×Height(mm) Ф320×200 Ф400×240 Ф440×270
Ring Inner Diameter×Height(mm) Ф980×200 Ф1280×240 Ф1600×270
Speed Of Main frame (r/min) 1480 1480 1480
Max. Input Size (mm) 25 30 35
Product Size (mm) 1.6~0.045 fineness can reach to 0.038 1.6~0.045 fineness can reach to 0.038 1.6~0.045 fineness can reach to 0.038
Capacity (t/h) 3~8.8 6~13 13~22
Overall Dimension (mm) 7300×5365×8310 9200×7000×9645 12550×5700×8355
Weight (t) 16 26.1 35



Name Item Unit Specifications & Technical Data
      TGM100 TGM130 TGM160
Motor for main frame Model   Y225S-4 Y280S-4 Y315M1-4
  Power kW 37 75 132
  Rev. rpm 1480 1480 1480
Motor for separator Model   YCT200-4A YCT200-4B YCT205-4A
  Power kW 5.5 7.5 18.5
  Rev rpm 125~1250 125~1250 125~1250
Motor for Elevator Model   Y100L-4 Y100L-4 Y112M-4
  Power kW 3 3 4
  Rev rpm 1420 1420 1420
Motor for Blower Model   Y225S-4 Y280S-4 Y315M1-4
  Power kW 37 75 132
  REV rpm 1480 1480 1480
Motor for Jaw Crusher Model PE 250×400 250×400 250×100
      Y180L-6 Y180L-6 Y200M-6
  Power KW 15 15 30
  REV rpm 970 970 970
Electro-Magnetic Vibrating Feeder Model   GZ2F GZ2F GZ3F
  Power W 150 150 200
